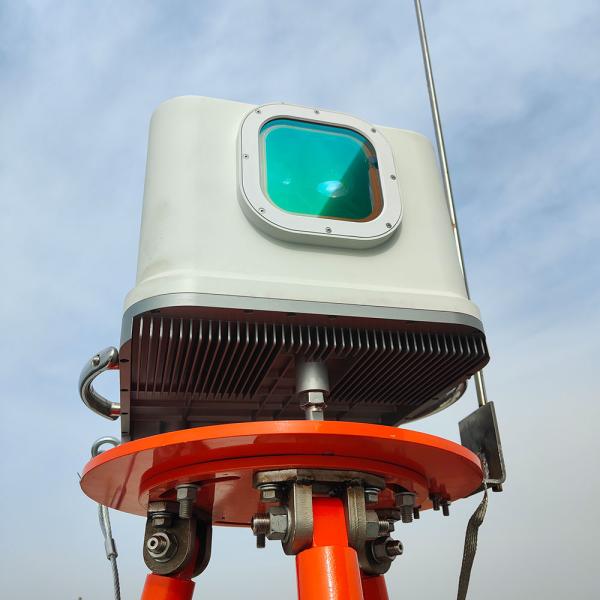

4 Beams Wind Lidars Horizontal Plane Angle 30 Vertical Plane Angle 10

Name: 4 Beams Wind Lidars Horizontal Plane Angle 30 Vertical Plane Angle 10
Brand: MOVELASER
Price: 5 USD

Brand Name : MOVELASER

Model Number : Molas NL

Certification : DNV GL , Intertek , RISO Dtu

Place of Origin : China

MOQ : 1 set

Price : Dollar 5W$+ （Price consultation customer service）

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 200 set ，1 month

Delivery Time : 1-2 months

Packaging Details : Air Box

Number of measured sections : 10

Sampling frequency : 4Hz

Wind direction measurement range : -180°～180°

Wind speed accuracy : 0.1m/s

Beam pointing accuracy : ±0.1°

Communication mode : Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN

Power : ≤300W

Anticorrosive : ISO C5

Radiation protection : CISPR 11

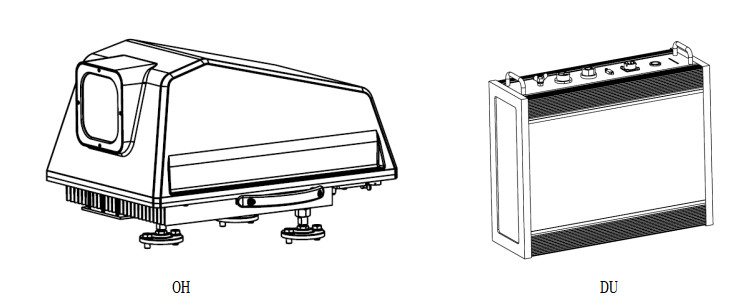

Weight : OHabout23Kg,DUabout6Kg

Contact Now

4 beams, the horizontal plane angle is 30°, thevertical plane angle is 10°

1,Summary

After the lidar is connected, you can view the lidar running status and wind speed inversion on four pages (as shown in the red box below in Figure 4.6), namely “lidar information”, “wind speed information”, “lidar data”, “power spectrum”.

2,Performance Parameter

Performance
Measure the distance	50~200m
Number of measured sections	10
Sampling frequency	4Hz
Wind speed measurement range	-50 ~50m/s
Wind direction measurement range	-180°～180°
Wind speed accuracy	0.1m/s
Accuracy of wind direction	±0.5°
Beam pointing accuracy	±0.1°

Other
Communication mode	Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN
Power supply	100 VAC~240VAC ±10% 50Hz~60Hz ±6%
Power	≤300W
Operating temperature range	-40℃～60℃
Survival temperature range	-40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged)
Working humidity range	0～100% RH
Survival wind speed	70m/s
Working acceleration range	-0.5g～0.5g
IP protection level	Equipment in engine room: IP54,Equipment outside engine room: IP66
Anticorrosive	ISO C5
Radiation protection	CISPR 11
Weight	OH约23Kg,DU约6Kg
