60W Wind Measurement Lidar

Name: 60W Wind Measurement Lidar
Brand: MOVELASER
Price: 1 USD

Brand Name : MOVELASER

Model Number : Molas CL

Place of Origin : China

MOQ : 1 set

Price : Dollar 1W$+ （Price consultation customer service）

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 200 set ，1 month

Delivery Time : 1-2 months

Packaging Details : Air Box

Ranging method : 1ToF

Range resolution : ≤0.1m

Repeated measurement accuracy : ±0.2m

Wavelength : 905nm

Laser safety level : Class 1

Range of working temperature : -40℃~+60℃

Survival temperature range : -45℃~+65℃

Working humidity range : 0%~100% RH

Enclosure rating : IP65 (or according to specific needs)

Working acceleration range : -0.5g ～ 0.5g

Luminous flux 1 : 0°

Luminous flux 2 : 2.05°±0.2°

Luminous flux 3 : 4.09°±0.2°

Real-time data products : Device ID, directly measure distance, return light intensity, Data valid flag, system status

Fieldbus : Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized

Operating power consumption : Within 60W

Supply voltage and maximum current : DC 24V, 3A

Size : 200×200×250mm

Contact Now

Wind Lidar Luminous flux 3 4.09°±0.2°

1,Product introduction

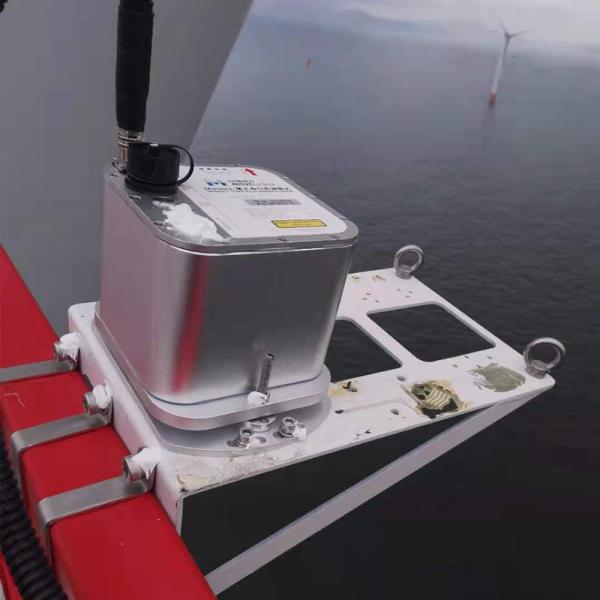

MolasCL can be installed in the front of the nacelle, by opening the nacelle, aligning the radar window with the opening, and detecting the fan blades downward. The opening is rectangular, the size is 140mm (parallel to the main axis) × 120mm. After completing the opening, after the calibration process, the radar is fixed on the nacelle shell by gluing.

2,Technical Data Sheet

Ranging index
Ranging method	1ToF
Detection distance	200m@90% reflectivity/ 140m@10% reflectivity
Range resolution	≤0.1m
Measurement accuracy	±0.2m
Repeated measurement accuracy	±0.2m
Resistance to ambient light	100Klux
Optical index
Wavelength	905nm
Repeat frequency	20KHz per channel
Laser safety level	Class 1
Environmental adaptability
Range of working temperature	-40℃~+60℃
Survival temperature range	-45℃~+65℃
Working humidity range	0%~100% RH
Enclosure rating	IP65 (or according to specific needs)
Working acceleration range	-0.5g ～ 0.5g
Beam pointing
Luminous flux 1	0°
Luminous flux 2	2.05°±0.2°
Luminous flux 3	4.09°±0.2°
Output measurement results
Real-time data products	Device ID, directly measure distance, return light intensity, Data valid flag, system status
Fieldbus	Profibus DP / Modbus RTU / CANopen Three fieldbus protocols, and RS485 communication can be customized
Qther
Operating power consumption	Within 60W
Supply voltage and maximum current	DC 24V, 3A
Size	200×200×250mm
